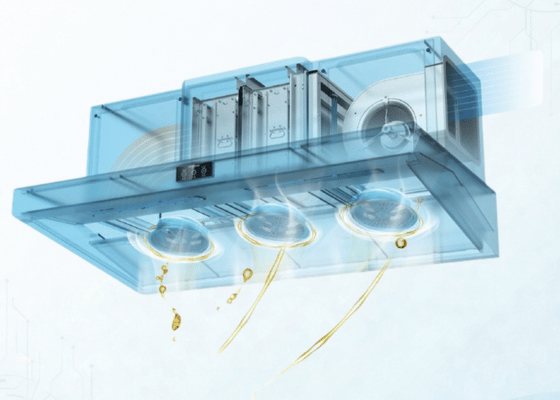

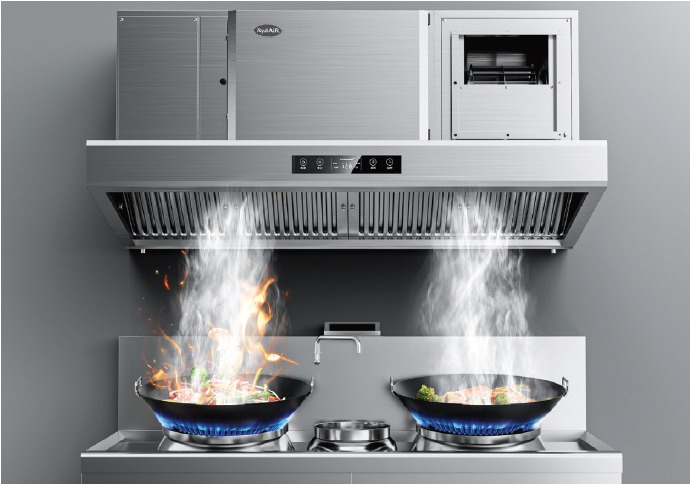

RydAiR’s INTEGRATED COOKING HOODS provide a neat, quick and easy setup for commercial kitchens and restaurants. The stainless steel hood is integrated with an Electrostatic Air cleaners either with or without a suitably sized blower. RC units with blower can be easily set up by simply connecting the blower outlet to an external duct. RC units without blowers can be linked together and connected to an external fan for extraction of the cleaned air. RC units, whether with or without blowers make for easy installation and convenient maintenance as the cells are within reach, in the kitchen premises.
The RC hood and ESP collection cells are made of stainless steel, for performance and durability. RC units are equipped with UV lamps for additional purification.
Multiple units (without blowers) installed side by side and served by an external exhaust fan for discharge outside the premises.
The special UV lamp reacts with photocatalyst impregnated with rare materials in the RHP units and converts moisture/ water vapour (H2O) and oxygen O2 in the untreated air and breaks them up into hydroperoxides (H2O2) and Hydroxyls which are highly reactive.
These hydroxyl radicals are small and agile and gets pushed into the environment where they attack bigger organic pollutant molecules like fungi, mould, odour causing bacteria, molds, VOCs and viruses, even the ones in hard to reach places, breaking apart their chemical bonds and turning them into harmless substances such as carbon dioxide and water.
Eliminate Surface-bound Germs
Eliminate Airborne Germs
Freshen Indoor Air
Eliminate Airborne Allergens
| Model No | RC3200 | RC3201 | RC4800 | RC4801 |
|---|---|---|---|---|
| Motor & Blower | Nil | Yes | Nil | Yes |
| Airflow Capacity (m³ Hr) | 3,200 | 3,200 | 4,800 | 4,800 |
| Voltage Input | 230V 50Hz 1 Phase | 380V 50Hz 3 Phase | 230V 50Hz 1 Phase | 380V 50Hz 3 Phase |
| Max Oil Mist Concentration (mg/m³) | 20 | 20 | 20 | 20 |
| Discharge Oil Mist Concentration at Outlet (mg/m³) | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 |
| Cleaning Efficiency (%) | ≥ 95% | ≥ 95% | ≥ 95% | ≥ 95% |
| Overall Dimension (L x W x H) mm | 1600 x 1100 x 977 | 1600 x 1100 x 977 | 2400 x 1100 x 977 | 2400 x 1100 x 977 |
| Outlet Flange Dimension (AXB) mm | 400 x 400 | 400 x 400 | 400 x 400 | 400 x 400 |
| Power ESP (W) | 280 | 280 | 280 | 280 |
| Blower & Motor (kW) | NA | 1.1 | NA | 1.5 |
| UV Lamps | Yes | Yes | Yes | Yes |
| Material | Stainless steel SUS201 | Stainless steel SUS201 | Stainless steel SUS201 | Stainless steel SUS201 |
| Gross Weight (Kg) | 183 | 210 | 248 | 275 |
